Sapphire NITRO+ AMD Radeon RX 6900 XT SE

FEATURES

• GPU: Boost Clock: Up to 2365 MHz
• GPU: Boost Clock: Up to 2135 MHz
• Memory: 16GB/256 bit DDR6. 16 Gbps Effective
• Stream Processors: 5120
• RDNA™ 2 Architecture
• Ray Accelerator:80
• ARGB Fan



PERFORMANCE TO RULE YOUR GAME



SAPPHIRE NITRO+ AMD Radeon™ RX 6900 XT SE
The NITRO+ AMD Radeon™ RX 6900 XT SE delivers powerhouse 4K gaming performance with vivid visuals for an elevated experience. The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralizes airflow for optimal heat dissipation and a virtually silent system. Cutting edge Memory & VRM Cooling with Heat-Pipes and next gen K6.5 Memory Pad ensures you can push your performance to new limits while keeping the NITRO+ AMD Radeon™ RX 6900 XT SE components icy cool. The brand new Hybrid Fan Design combines the tranquility and strong air pressure features that exhibit ultimate levels of downward air pressure through the fan while keeping fan noise low. Incredible ARGB Lighting across the graphics card using our SAPPHIRE TriXX software fused with beautiful aesthetic styling will ensure the NITRO+ AMD Radeon™ RX 6900 XT SE is a stunning addition to every enthusiast gamer’s PC. NITRO Charge your PC with the NITRO+ AMD Radeon™ RX 6900 XT SE and elevate your gaming experience to the next level!

THE ULTIMATE GAME CHANGER
Powerhouse Performance for 4K Gaming

SAPPHIRE NITRO+ Graphics Card FEATURES
Explore all the incredible features that come with the SAPPHIRE NITRO+ AMD Radeon™ RX 6900 XT SE Graphic Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you



Software BIOS Switch
Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.

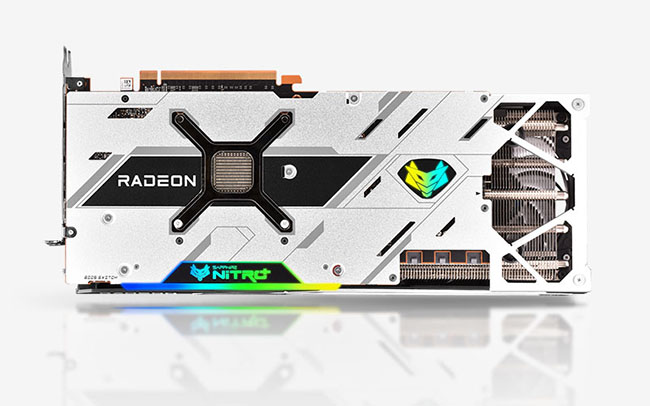

Backplate
Provides rigidity and helps cool your card by increasing heat dissipation.

ARGB
Personalize the look of your NITRO + card with its built-in ARGB and ARGB fans.

Outputs
Choose from HDMI and DP slots for a maximum of 4 outputs

Cooling
Innovative cooling technologies to ensure optimal performance and airflow.



WAVE Fin Design & V-Shape Fin Design for GPU cooling
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.



Hybrid Fan Blade
The new hybrid fan design combines the quietness of a traditional axial fan design and strong air pressure of a blower fan design to generate an improvement in the downward air pressure through the fan while keeping the fan noise low.



Integrated Cooling Module & K6.5 Memory Pad
The combined Memory & VRM cooling module cools the memory, MOSFET, and the chokes. Two heat pipes are added underneath the module to dissipate the heat from the components with better efficiency.
When compared to the previous K5, the K6.5 Memory Pad has a nearly 38% better thermal conductivity between the components and the cooler.

TRI-X COOLING TECHNOLOGY





An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections
This
Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system

Heat is dissipated by a trio of efficient fans – two, slightly bigger, on the sides, running anticlockwise, and a smaller middle fan running clockwise to ensure optimal airflow

AMD RDNA™ 2

TECHNICAL SPECS

GPU
AMD Radeon™ RX 6900 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
Boost Clock: Up to 2365 MHz
Game Clock: Up to 2135 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
5120
Infinity Cache
128MB
Ray Accelerators
80
Memory Size/Bus
16GB GDDR6
Memory Clock
16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0
Output
1x HDMI
3x DisplayPort
BIOS Support
Dual UEFI
Game Index
4K
Sapphire Features
Dual BIOS
Max Boost
TriXX Software Switch
Premium Digital Power Design
Fuse Protection
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Backplate with ARGB
ARGB Fans
Two-Ball Bearing Fans
Hybrid Fan Blade
Wave Fin Design
V Shape Fin Design for GPU Cooling
Integrated Cooling Module
K6.5 Memory Pad
TriXX Supported
Fan Check
Fan Quick Connect
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization
AMD Features
AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
High Performance 4K Gaming
Cooling
3 Fans
Form Factor
2.7 slot, ATX
Dimension: 310(L)X 134.3(W)X 55.3 (H)mm
Power Consumption
363W
OS
Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
Minimum 850 Watt Power Supply
2 x 8-pin + 1 x 6-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
