InWIN ca02 H-Frame 2.0
- Black & Gold (500pcs limited edition with exclusive serial number)
- Open frame Chassis with black aluminium frames + 2x sided tempered glass, 6-modes LED lighting with brightness adjust buttons on front panel
- Bundled InWIN S2-1065W Full-modular transparent PSU with 65w emit outputs (for lighting + cooling + USB charging when PC is off), 165mm silent fan
- TIG (Tungsten Inert Gas) welding tubing, two-way open design with quick release fasteners, anti-flip foot pads, support up to 440mm long card, 90degree reversed motherboard tray ; 1x front usb3.1 type C + 3x usb3.0 + audio in/out
- 2 x external accessed hot swap HDD brackets + 4x multifunction HDD bracket for 3.5" or 2.5" (position adjustable)
- up to 4x 120mm fans, support up to 360mm radiators
- E-ATX with 8x expansion slots

Next Level of Craftsmanship
The H-Frame 2.0 is a sleeker, more polished H-Frame with an open-frame concept composed of nine aluminium stacked sheets and tempered glass side panels, creating a vibrant and astounding visual display.

Supports the Latest USB 3.1 Gen1 Type-C
The newest USB 3.1 Gen1 Type-C is featured in H-Frame 2.0. Experience the rapid transfer speeds, and the convenience of the reversible Type-C connector.

In Win’s 30th Anniversary Limited Edition Bundle
In honor of In Win’s 30th anniversary, In Win introduces their first limited edition Case+ Power Supply. Each H-Frame 2.0 includes a SII-1065W power supply, which is made exclusively for H-Frame 2.0. This perfectly matched hardware grants owners with an In Win exclusive bundle, which is marked with a serial number of its production.

More Flexible Installation

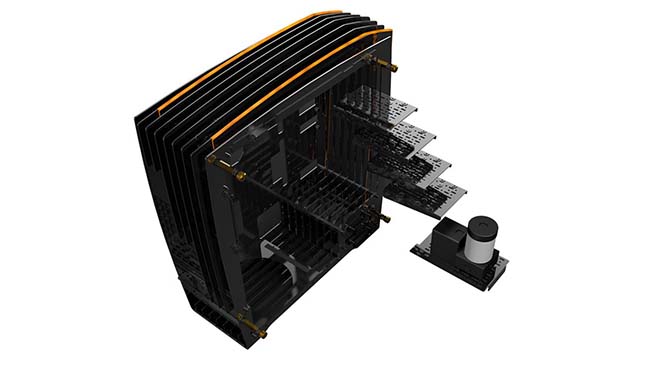

A total of six 3.5”/2.5” multipurpose HDD trays allows convenient installation. Furthermore, the additional water cooling tray can hold different size water cooling pumps or reservoir for extra thermal solution alternatives.

User Friendly Design
3.5”/2.5” SATA HDD EZ-Swap Module with an HDD tray handle for easier installation and removal.

Upgraded Expandability
The H-Frame 2.0 supports high-end graphics cards up to 330mm, and up to an E-ATX motherboard. The spacious interior is able to accommodate a top radiator up to 360mm for excellent airflow.

2.0: Whole New Generation
Limited Edition with Unique In Win 30th Anniversary Commemorative Thumbscrews.

Technical Specs
Model H-Frame 2.0
Color Black/Gold LED Light
Case Type Full Tower
Case Material Aluminium, Tempered Glass
M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX
Expansion Slots PCI-E x 8
High-end Graphics Card Compatible
- Length: 330mm Maximum (With HDD Tray)
440mm Maximum (Without HDD Tray)
Front Ports 3 x USB 3.0
1 x USB 3.1 Type-C
HD Audio
Internal Drive Bays 6 x 2.5"/3.5"
- Supports SATA HDD EZ-Swap Module x 2
Thermal Solution Compatibility 1 x 120mm Rear Fan
3 x 120mm Top Fan
1 x 360mm Top Radiator
CPU Heatsink Compatible
- CPU die surface to side panel height: 185mm Maximum
Power Supply Compatibility SII-1065W Internal PSU Included
PSII: ATX12V and EPS12V
- Length: 210mm Maximum
Product Dimension
(H x W x D) 597mm x 271mm x 582mm
23.5" x 10.6" x 22.9"
Product Dimension
(H x W x D)
with screw height 597mm x 298mm x 582mm
23.5" x 11.7" x 22.9"
Package Dimension
(H x W x D) 365mm x 712mm x 834mm
14.4" x 28" x 32.8"
Net Weight 19.12kg/42lb
Gross Weight 25.52kg/56lb
