InWIN ca03 D-Frame 2.0
- Black & Yellow/Gold (500pcs limited edition with exclusive serial number)
- Open frame Chassis with Gold plated steel tubing + 2 x sided tempered glass
- Bundled InWIN S3-1065W Full-modular transparent PSU with 65w emit outputs (for lighting + cooling + USB charging when PC is off), 165mm silent fan
- TiG (Tungsten Inert Gas) welding tubing, two-way open design with quick release fasteners, anti-flip foot pads, support up to 415mm long card, 90degree reversed motherboard tray; 1x front usb3.1 type C + 3x usb3.0 + audio in/out
- 4 x multifunction HDD bracket for 3.5" or 2.5" (position adjustable)
- Up to 5x 120mm fans with modular brackets, support up to 2 x 360mm radiators
- E-ATX with 8x expansion slots

The design concept for D-Frame 2.0 originates from the freedom, individuality and impulsive nature of off-road motorcycles. The combination of steel tubing, anti-flip foot pads with deep tire treads, a power supply in the shape of an air-cooled engine and tempered glass is perfect fusion of art and technology.

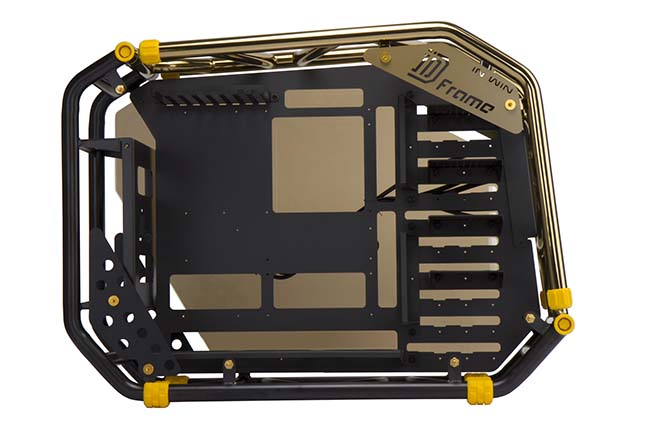

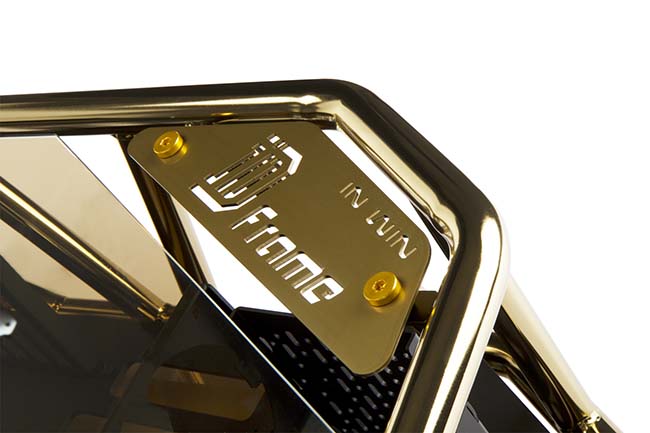

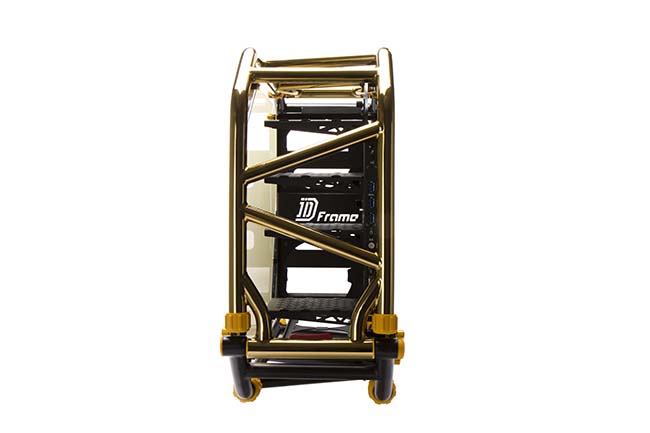

Handcrafted Metallic Tubing Structure
Expertly bent tubing is entirely crafted by human hands. TIG (Tungsten Inert Gas) welding is used to reinforced stability, and unique electrode position, which creates an ultra-smooth finish! The motherboard mounting tray is sandblasted to achieve a refined metallic texture.

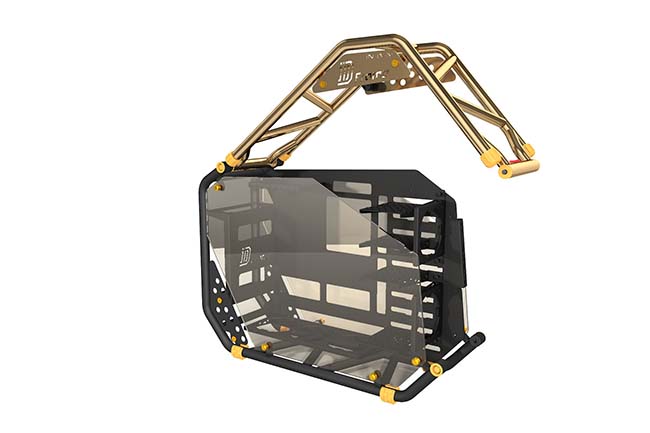

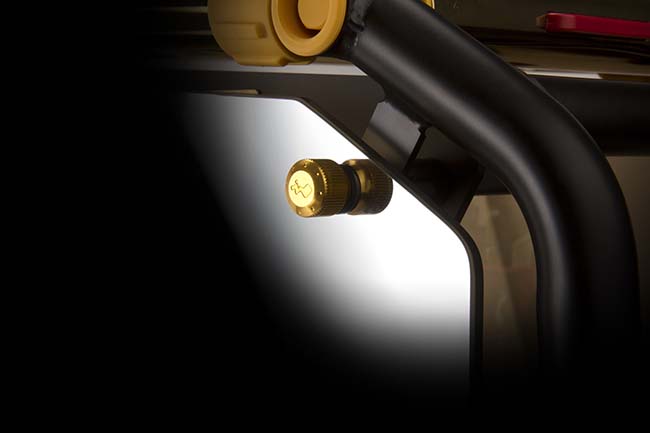

Innovative Two-Way Open Design with Quick-Release Fasteners
The outer frame features a unique two-way open design. With its quick-release fasteners, D-Frame 2.0 allows for easier assembling and custom display platforms.

Open-Frame Structure with Excellent Thermal Solutions
Open-frame structure improves heat dissipation and airflow is effectively channeled, ensuring excellent ventilated performance.

Highly Expandable for Superb Performance
Supports the latest high-end graphics cards, CPU heatsink and E-ATX motherboards (12”x13”).

Supports the Latest USB 3.1 Gen1 Type-C
The newest USB 3.1 Gen1 Type-C is featured in D-Frame 2.0. Experience the rapid transfer speeds, and the convenience of the reversible Type-C connector.

2.0: Whole New Generation
Every detail reflects the aesthetics of craftsmanship.

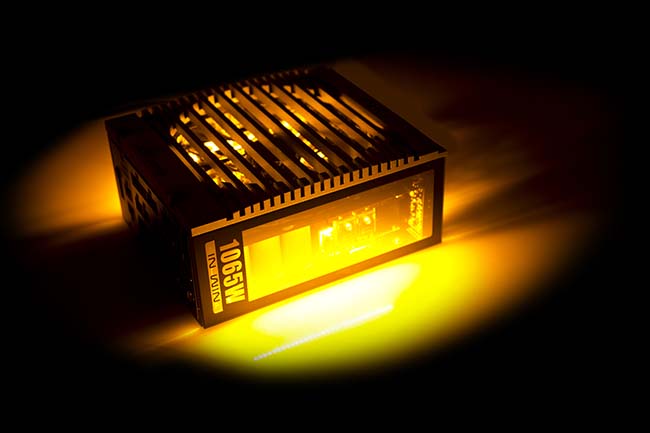

SIII-1065W Transparent Power Supply
Each D-Frame 2.0 includes a SIII-1065W power supply, which is exclusively designed for D-Frame 2.0

Technical Specs
Model D-Frame 2.0
Color Black/Gold Platinum
Case Type Open-Air Chassis
Case Material Reinforced Steel Tube, Aluminium, Tempered Glass
M/B Compatibility 12" x 13" E-ATX, ATX, Micro-ATX
Expansion Slots 8 x PCI-E Slots
Maximum Compatibility VGA Card Length: 350-415mm (Depends on Mounting Configuration)
VGA Card Height: 173mm (Motherboard Die Surface to Side Panel)
CPU Heatsink Height: 165mm (CPU Die Surface to Side Panel)
Front Ports 1 x USB 3.1 Type-C
3 x USB 3.0
HD Audio
Internal Drive Bays 4 x 2.5“/3.5” Multifunctional Brackets
Thermal Solution Compatibility 2 x 120mm Fan Brackets (Supports 2 x 120mm Fans)
1 x 3-in-1 Fan Bracket (Supports 3 x 120mm Fans)
Supports 1 x 360mm Radiator
- Front: 90mm Maximum Height including Fans
- Bottom: 65mm Maximum Height including Fans
Power Supply Compatibility SIII-1065W Internal PSU Included
ATX12V and EPS12V
- Dimension(L x W x H): 210 x 180 x 96 mm
Product Dimension
(H x W x D) 548 x 264 x 726 mm
21.6” x 10.4” x 28.6”
Product Dimension
(H x W x D)
with screw height
548 x 291 x 726 mm
21.6" x 11.5" x 28.6"
Package Dimension
(H x W x D) 760 x 346 x 842 mm
29.9" x 13.6" x 33.1"
Net Weight 22.5kg/49.5lbs
Gross Weight 25.5kg/56.1lbs
