InWIN 909 Full Tower Chassis
- Silver with dual 5mm tempered glass side panels, with white logo display), no PSU (bottom placed), quad chambers design for heat separation , support up to 440mm long card, brushed-hairline aluminium; 1x usb3.1 type C + 3x front usb3.0 + audio in/out
- 4/0x 3.5" (in hot swap HDD cage) + 6/10 x 2.5"
- Up to 8 fan with magnetic aluminium dust filter, support up to 4x radiators (120+240+280+360mm)
- Support up to E-ATX
- Up to 8x expansion cards

Impressively Detailed Craftsmanship
909 is constructed with solid materials, and its chamfered edge design and sleek anodized aluminium are beautifully crafted to masterfully create a streamlined and smooth enclosure inside/out.

Simplicity in Design
909 features a single piece 4mm brushed aluminium shell and an elegant back panel that hides unnecessary rear I/O cables. The clutter-free design demonstrates the elegant aesthetics of simplicity.

Tempered Glass Side Panels
The side panels are finished entirely out of 5mm tinted tempered glass which reveals the internal LED light, and overall enhances the 909 into a truly modern and dynamic appearance.

Latest USB 3.1 Gen 2 Type-C
909 fully supports the motherboards with Front USB 3.1 Gen 2 Type-C solution, allowing users experience the highest data transferring speed and dual-side slot also increases convenience.

Magnetic Aluminium Dust Filter
The front intake fan dust filter has an embedded magnet design for easy removal creating a convenient installation and more importantly excellent dust reduction

Elegant Lighting Effects
A high-quality chassis should look beautiful when powered on and with the 909 it has a white LED strip creating various lighting effects to illuminate the PC interior beautifully highlighting the interior components

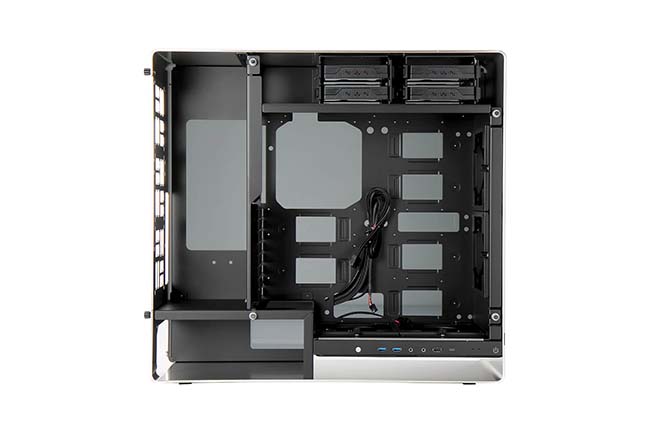

Unique HDD & PSU Chamber Design
The separate HDD and PSU chambers provide an ideal thermal environment by allowing heat airflow to dissipate directly to the back venting holes without interfering with the motherboard and graphic card area, and significantly improving the ventilation.

Technical Specs
Model 909
Part Number IW-909C-Silver
Color Silver
Case Type Full Tower
Case Material Tempered Glass, Aluminum
M/B Compatibility 12" x 13.4" E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots PCI-E x 8
Maximum Compatibility VGA Card Length: 320mm Maximum
VGA Card Height: 180mm Maximum
CPU Heatsink Height: 175mm
Front Ports 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
1 x USB 2.0
LED Light Button
HD Audio
Internal Drive Bays 4 x 2.5"/3.5"
6 x 2.5"

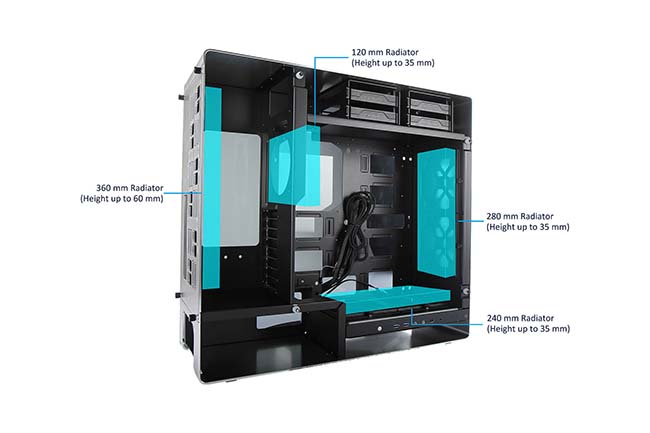

Thermal Solution Compatibility 2 x 120 or 140mm Front Fan / 280mm Radiator
1 x 120mm Middle Fan / 120mm Radiator
3 x 120mm or 2 x 140mm Rear Fan / 360mm Radiator
2 x 120 or 140mm Bottom Fan / 240mm Radiator
Power Supply Compatibility PSII: ATX12V and EPS12V
- Length: 220mm Maximum
Product Dimension
(H x W x D) 540 x 230 x 575mm
21.3" x 9.1" x 22.6"
Product Dimension
(H x W x D)
with screw height 545 x 250 x 586mm
21.5" x 9.8" x 23.1"
Package Dimension
(H x W x D) 370mm x 707mm x 672mm
14.6" x 27.9" x 22.6"
Net Weight 17kg / 37.48lb
Gross Weight 20.6kg / 45.42lb
