InWIN 905 Full Tower Chassis with OLED display (customizable or PC health display)
- Silver with dual tempered glass side panels, with white logo display), quick-release side panel, no PSU (bottom placed), dual chambers design for heat separation, support up to 330mm long card, brushed-hairline 4mm aluminium; 1x usb3.1 Gen2 type C + 2x front usb3.0 + audio in/out
- 1x 3.5" + 4x 2.5"
- Up to 6x120mm fans with anti-dust filter, support up to 3x radiators (120+240+360mm)
- Support up to E-ATX
- Up to 7x expansion cards

Redefining Craftsmanship
Intricate details are engineered throughout the 905 that requires extensive production time. The 4mm aluminium shell is bent and presented with a classic hairline finish. The front LED display enforces 15 precise cuts to ensure quality craftsmanship

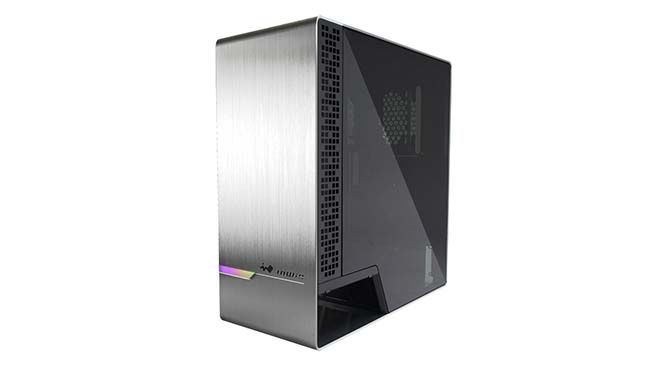

ARGB Mode
The 905’s front LED display is ARGB (3-pin, 5V), simply connect to an ARGB motherboard to synchronize the LEDs with the entire system. If your motherboard doesn’t feature an ARGB header, the lighting will be placed on a default setting (InWin LED mode).

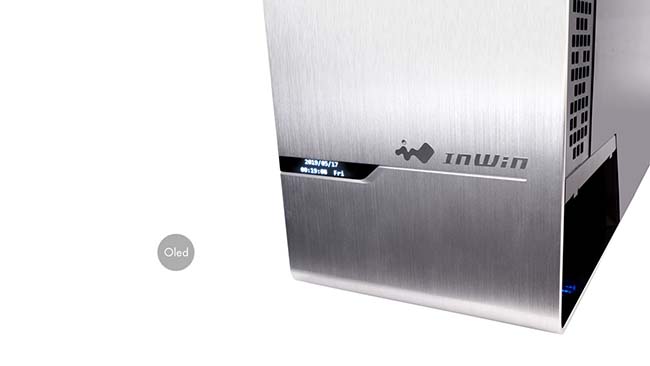

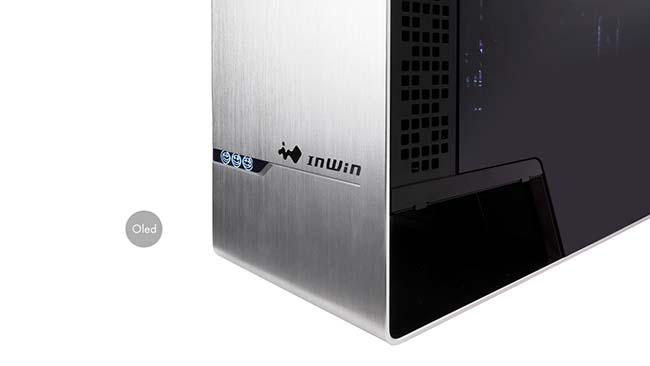

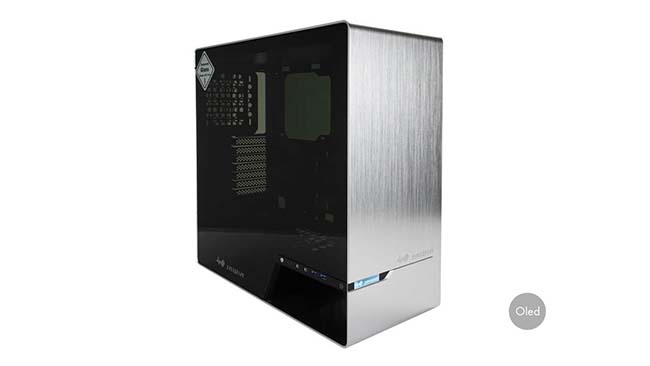

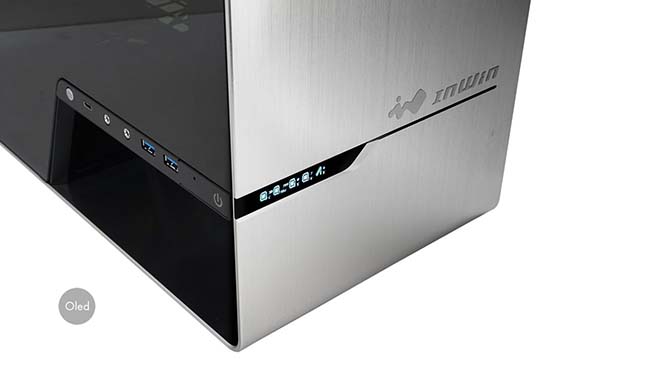

OLED Display
The 905’s OLED display offers multiple functions for customization. Use photos, apply text, install a GIF, reveal the time, display system performance or just enjoy the light show all with the InWin software. Toggle these functions by pressing the designated side button.

Quick-Release Side Panel Design
The 905 flaunts a sleek, clean exterior. Since the tinted tempered glass are windows to the soul of a PC, the 905 is free of thumbscrews and presents user-friendly rear quick-release buttons. Remove the side panels by simply pressing a button.

Multiple Liquid Cooling Options
In addition to its sleek and gorgeous design, the 905 is excellent in terms of cooling performance. Up to a 360mm radiator can be placed at the bottom, up to 240mm radiator in front and a 120mm radiator in the rear. Plenty of options for flexible cooling solutions.

Added Ventilation
Ventilation is at a premium in the 905. The bottom incline serves as an area to both remove generated heat and intake cool air. The PSU chamber is at the bottom near the rear to quickly dispose of heat. It can mount six total fans.

Technical Specs
Model 905
Part Number IW-905-SILOLED
Colors Silver (Addressable RGB)
Case Types Mid Tower
Materials Aluminium, Tempered Glass, SECC
M/B Compatibility 12” x 13” E-ATX , ATX , Micro-ATX , Mini-ITX
Expansion Slots PCI-E x 7
Maximum Compatibility VGA Card Length : 330mm
CPU Heatsink Height :160mm
I/O Ports USB 3.1 Gen 2 Type-C x 1
USB 3.0 x 2
HD Audio
LED Lighting Control Switch or OLED Screen
Internal Drive Bays 1 x 3.5"
2 x 2.5" (2 pre-installed, max. up to 4)
Thermal Solution Compatibility 1 x 120mm Rear Fan / 120mm Radiator
2 x 120mm Front Fan / 240mm Radiator
2 or 3 x 120mm Bottom Fan /240 or 360mm Radiator
Power Supply Compatibility PSII : ATX12V
- Length up to 230mm
Product Dimension
(H x W x D)
with button & stand height 502 x 215 x 508mm
19.7" x 8.4" x 20"
Package Dimension
(H x W x D) 337 x 611 x 592mm
13.2" x 24" x 23.3"
Net Weight 11.98kg / 26.4lb
Gross Weight 14.26kg / 31.44lb
