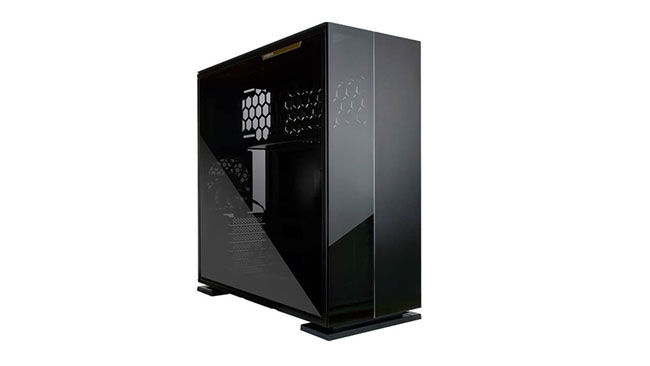

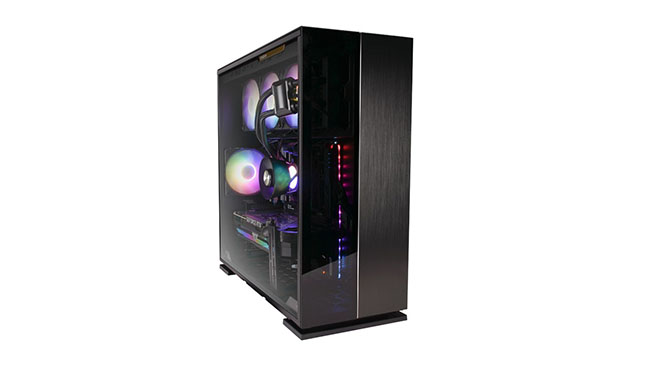

InWin 315 Mid-Tower Chassis - Black



Unmatched Quality
This fine aluminium structure makes the perfect contrast to the tinted glass on the front and top panels. Indulge yourself in this exquisite combination to showcase a simple, yet elegant system aesthetic.



Quick-Release Side Panel Button
The tinted tempered glass side panel is the window to the soul of your system. Use this convenient and screwless quick-release design to remove the side panel by simply pressing a button!



Details that Matter
Small details matter to us! The high-quality aluminium panels and power button are presented with a delicate classic hairline finish and all the edges are beautifully polished with a diamond cut to prevent scratches. To top it off, the tempered glass side panel is embellished with an InWin logo engraved on an exquisite metal badge.



Highly Expandable for Superb Performance
315 is a Mid Tower but supports up to E-ATX motherboard (12” x 13”) and can accommodate multiple 2.5” / 3.5” storage devices at the same time.

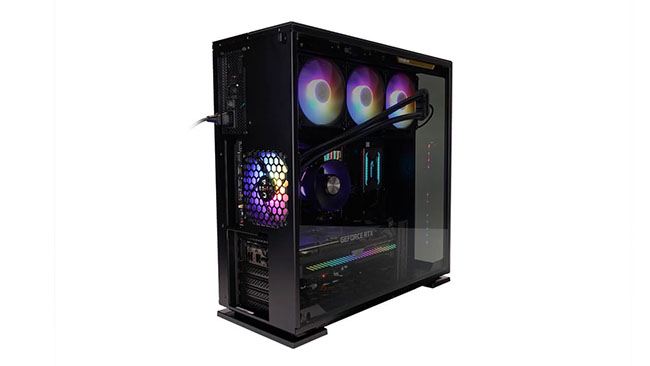

Versatile Cooling Options
The 315 can accommodate three fans at the bottom, three fans at the top and one rear fan for efficient cooling solutions. You can also install liquid cooling radiators instead. The choice is yours!



ARGB PWM fan Luna AL120
Pre-installed Luna AL120 high performance, ARGB cooling fan will provide powerful cooling performance, while reflecting ARGB lighting through its crescent white fan blades.

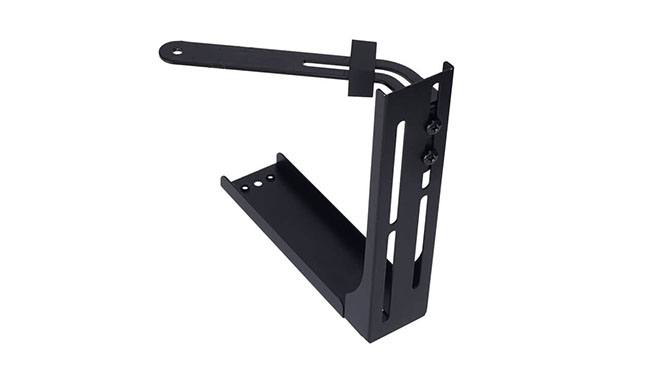

Versatile GPU Anti-Sag Support
Graphics cards keep getting bigger and heavier! InWin has found a solution and developed a versatile graphics card holder design to keep your GPU from sagging and to protect your system!



Speedy connectivity
Time is valuable! The 315 features USB 3.1 Gen 2 Type-C port for fast charging speeds and outstanding data transfer rates.

TECHNICAL SPECS

Model 315
Model Number IW-CS-315BLK-1AL120
Colors Black
Case Type Mid Tower
Materials Aluminium, SECC, Tempered Glass
M/B Compatibility 12" x 13" (305 x 330 mm) E-ATX, ATX, Micro-ATX, Mini-ITX
Expansion Slots 7 x PCI-E
Maximum Compatibility VGA Card Length: 350 mm
CPU Heatsink Height: 160 mm
I/O Ports 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
HD Audio
Internal Drive Bays 2 x 3.5" / 2.5"
2 x 2.5"
Thermal Solution Compatibility Air Cooling Fans:
Top: 3 x 120 mm
Rear: 1 x 120 mm
Bottom: 3 x 120 mm
(1 InWin Luna AL120 Fan Included)
Water Cooling Radiator:
Top: 1 x 360 mm
Rear: 1 x 120 mm
Bottom: 1 x 360 mm (Slim)
Power Supply Compatibility PSII: ATX12V
- Length up to 200 mm
Product Dimensions
(L x W x H) 494 x 225 x 505 mm
19.5 x 8.8 x 18.9"
Package Dimensions
(L x W x H) 572 x 610 x 335 mm
22.5 x 24 x 13.1"
Net Weight 12.3 kg
Gross Weight 14.6 kg
