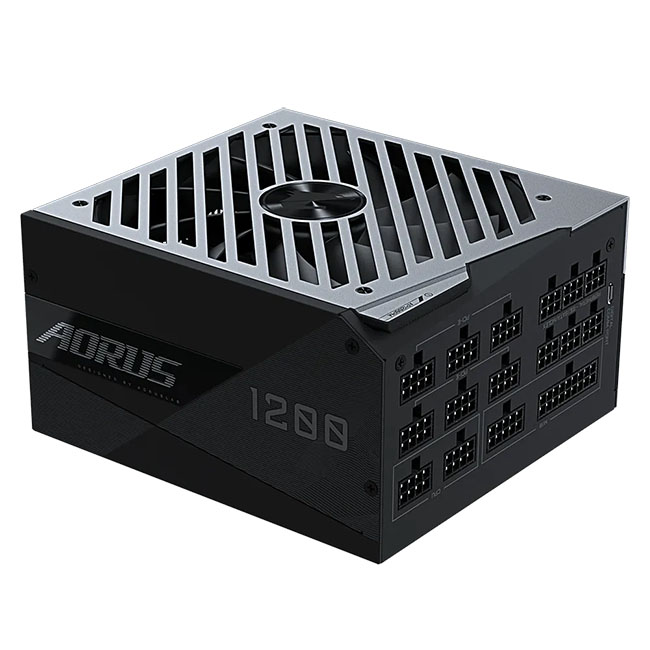

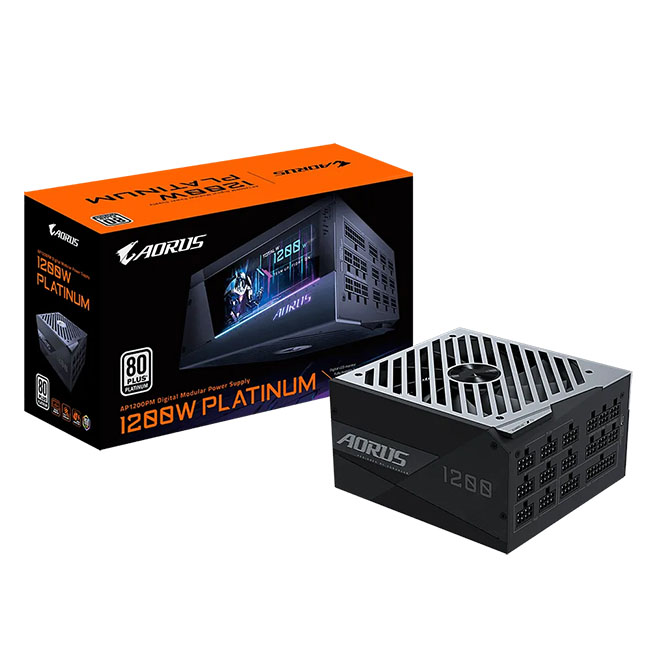

Gigabyte AORUS P1200W 80+ PLATINUM MODULAR

FEATURES

• Digital LCD monitor
• 80 PLUS Platinum certified
• Fully modular design
• 100% Japanese capacitors
• Compact size design

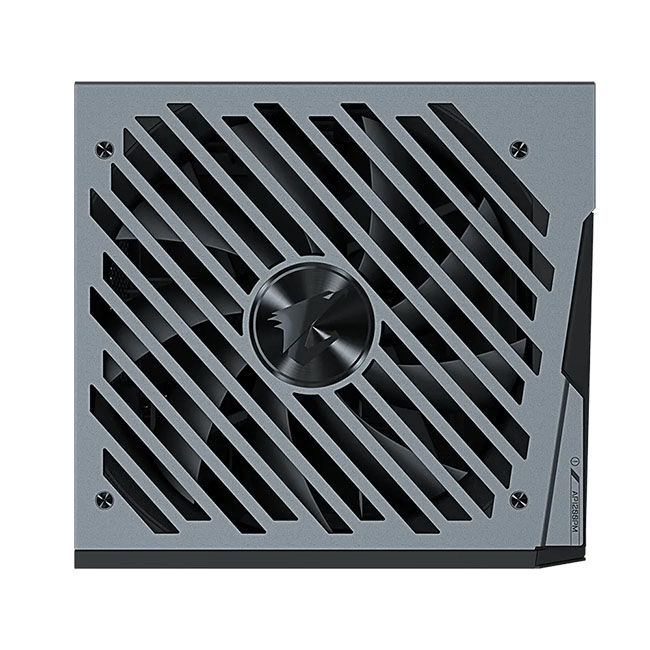

• 140mm smart double ball bearing fan
• Fan dust removal function
• Single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• 10 years warranty

ThisThisThis



DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style. Welcome to the Digital Code Era.

DIGITAL LCD MONITOR
The Digital LCD Monitor can not only display the health status of the power supply in real time, but also display various texts, pictures, GIFs and MP4. You can also adjust the lighting effect through RGB FUSION 2.0 software.

ENTHUSIAST
The powerful digital monitoring function can instantly display the power consumption wattage, current, temperature, fan speed and other values of the power supply.

CUSTOM TEXT
Display the edited text content.

CUSTOM IMAGE
Support jpg, bmp and png file types. You can crop the image to fit.

CUSTOM GIF
Display your favorite GIF video.

CUSTOM VIDEO
Display your favorite MP4 video.



FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

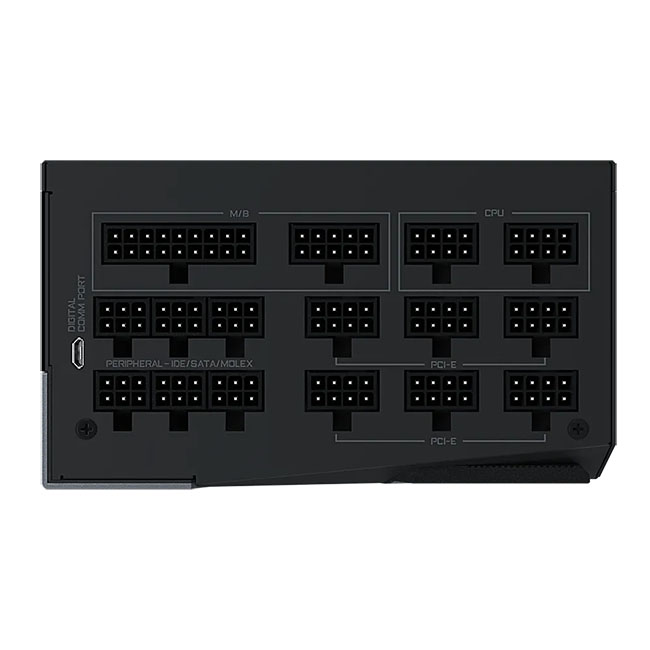

CONNECTORS

QUALITY
Quality is the top priority of AORUS design. AORUS ensures that the power supply can continuously supply high-quality power, thereby enhancing the performance of the computer and prolonging its service life.

• 80 PLUS PLATINUM CERTIFIED
• 100% JAPANESE CAPACITORS
• PROTECTION

80 Plus Platinum certified ensures to deliver 92% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

EXCELLENCE
AORUS provides a variety of thoughtful designs that make users feel easy to use while enjoying high-quality products.


RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.



COMPACT SIZE DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, AORUS has reduced the size of a 1200W power supply that is generally designed to be 200 mm long to an amazing 160 mm, so it can be easily installed in any chassis without space constraints.

TECHNICAL SPECS

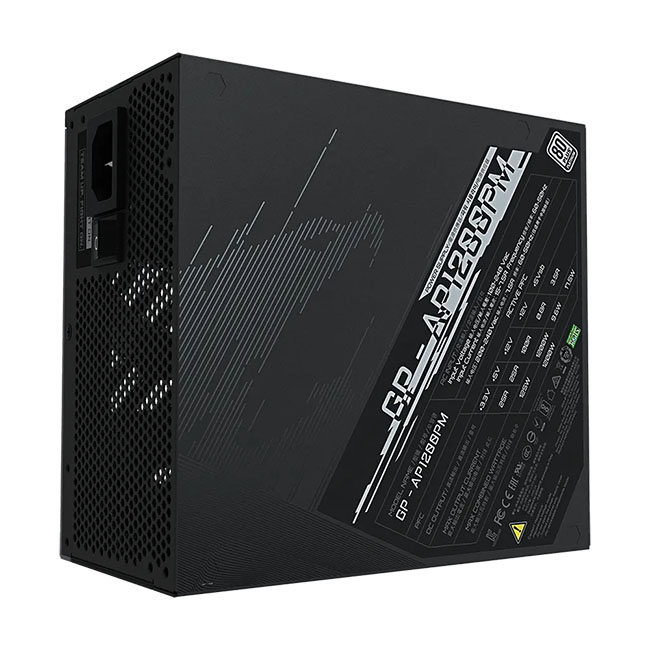

Model
GP-AP1200PM
Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
15-7.5A
Input Frequency
60-50 Hz
Output Capacity
1200W
Dimension
150 x 160 x 86mm
Fan Type
140mm Double ball bearing Fan
80 PLUS
Platinum
Efficiency
92% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2
SATA x 16 : 650mm+150mm+150mm+150mm*4
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2
