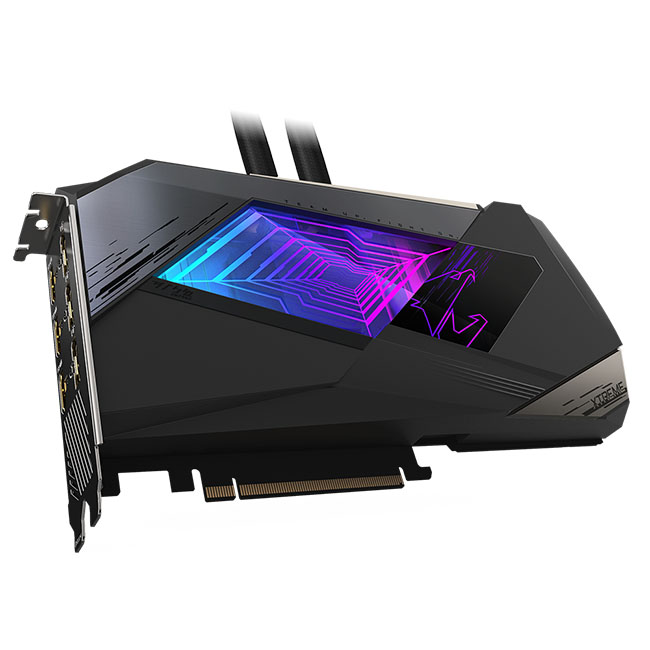

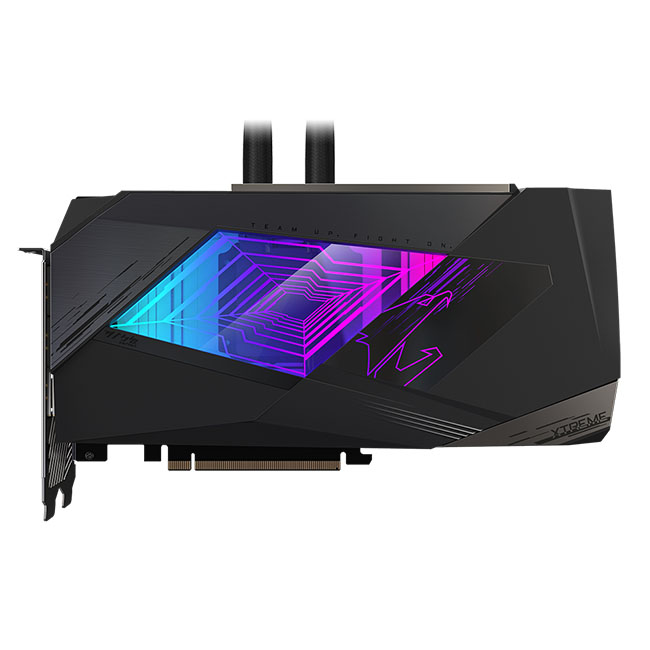

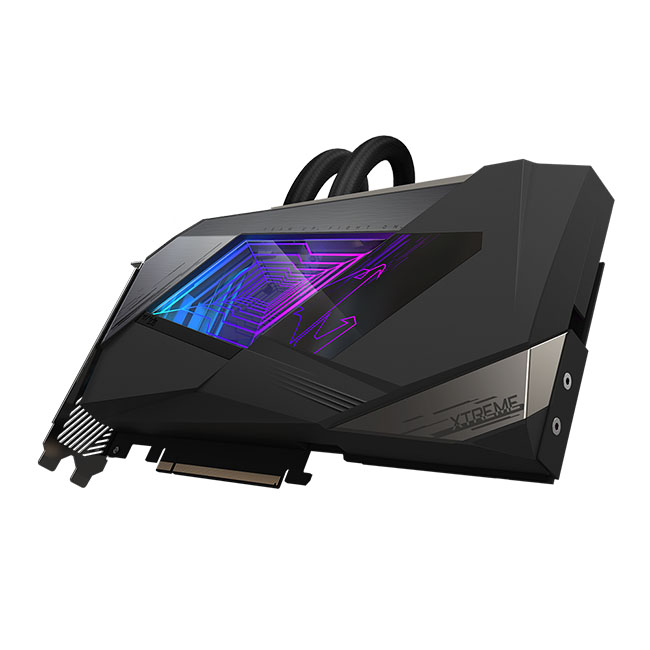

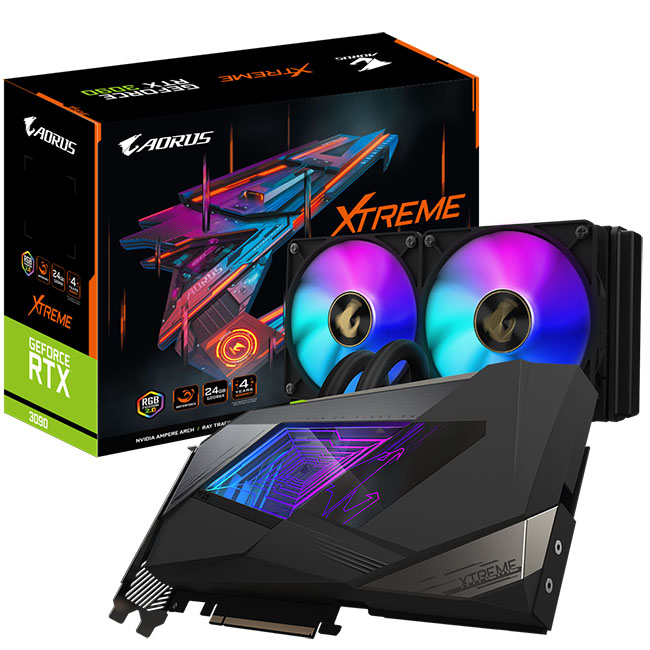

Gigabyte AORUS GeForce RTX 3090 XTREME WATERFORCE 24G

FEATURES

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3090
• Integrated with 24GB GDDR6X 384-bit memory interface

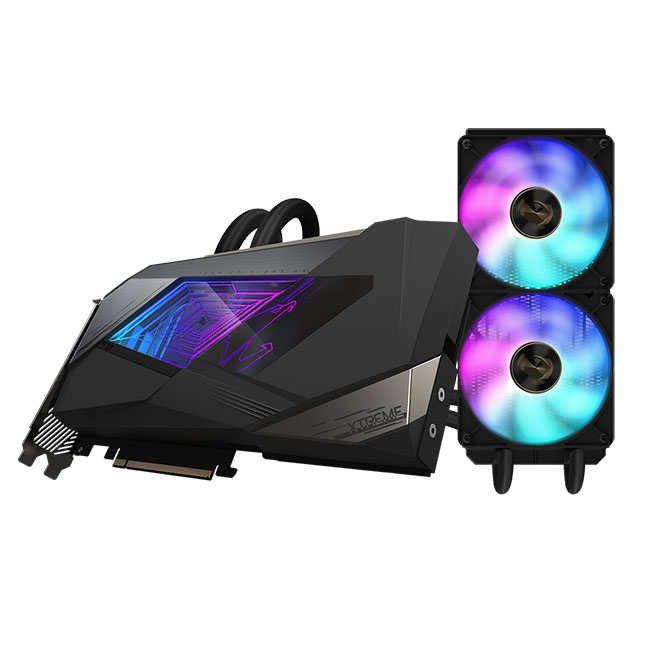

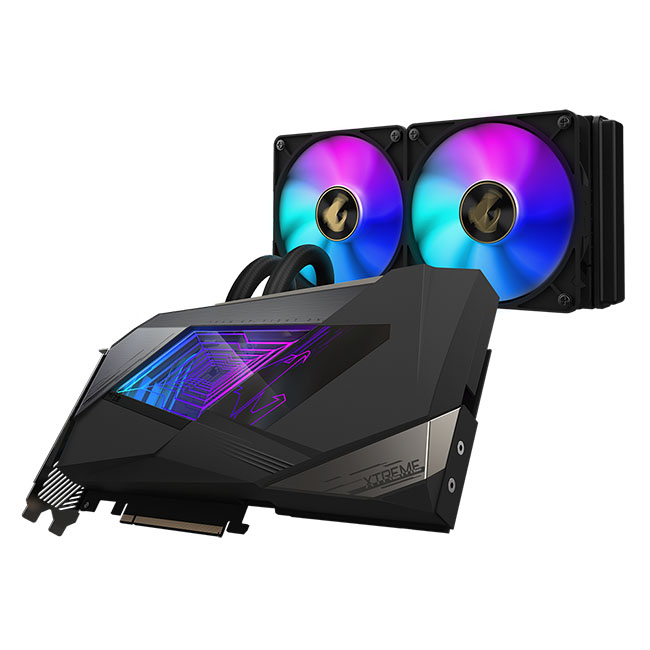

• WATERFORCE all-in-one cooling system
• 240mm radiator with 2x 120mm ARGB fans
• RGB Fusion 2.0
• 6 Outputs
• Protection metal back plate
• 4 Years Warranty (Online registration required)

CORE CLOCK
1785 MHz (Reference Card: 1695 MHz)

ThisThisThis

DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style. Welcome to the Digital Code Era.

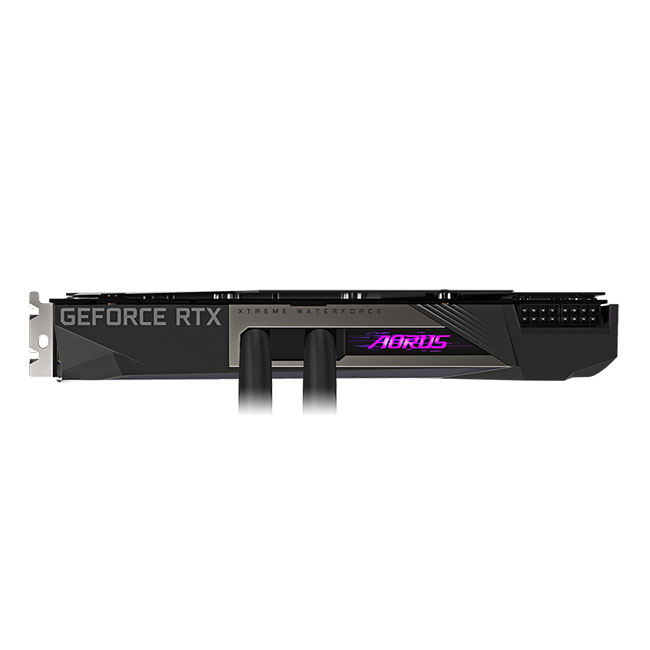

WATERFORCE COOLING SYSTEM
The ideal way for PC enthusiasts to enter the world of water cooling without having to deal with complicated installations. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.



EASY INSTALLATION
With the pre-assembled water pipe and pump, users can easily install the graphics card without leakage concerns.

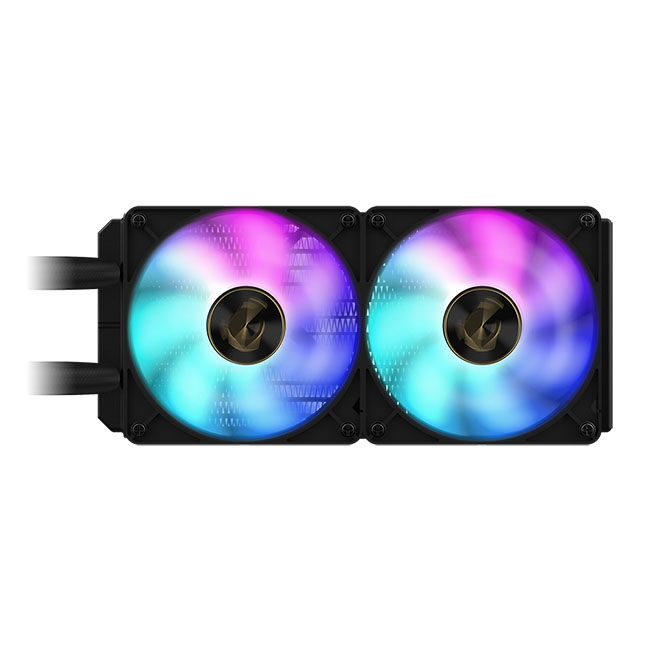

Optimized 240mm ALUMINUM RADIATOR
The double-sized radiators and fins increase the surface area and volume for thermal, making the graphics card more stable and cool under high overclocks.



2X 120MM ARGB FANS
The dual fans can generate more airflow to better heat dissipation, delivering a powerful cooling and quiet gaming experience. The ARGB fans lights also can synchronize with the graphics card for various light effects via RGB FUSION 2.0.



DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.



LARGE COPPER BASE PLATE
The copper base plate directly touches the GPU, VRAM and other critical parts. Coupled with heat pipes, the heat can be transferred to the liquid cooling zone for achieving enhanced heat dissipation.



BRAIDED FEP TUBES
With nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.



RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

PERFORMANCE
GeForce RTX™ 3090 with 24G memory and 936 GB/s memory bandwidth has 10496 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

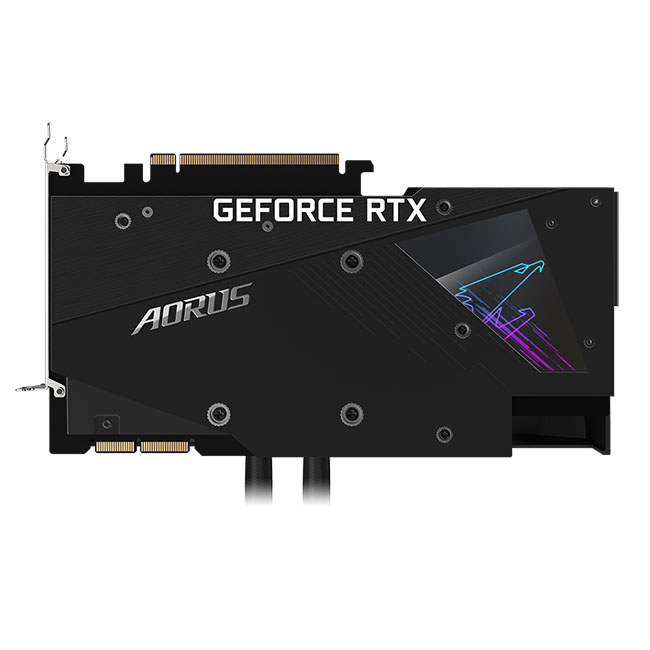

METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

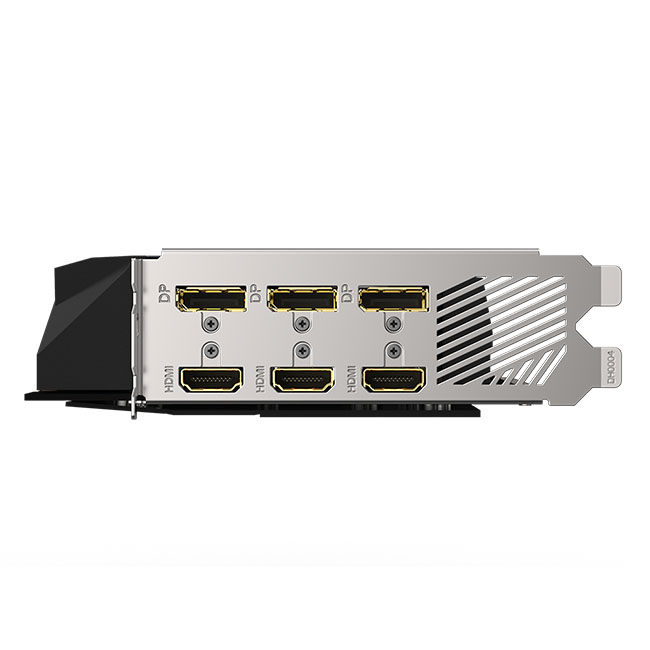

6 OUTPUTS
You can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)



POWER INDICATORS
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.



NVIDIA NVLINK™ SUPPORT
Support for NVIDIA NVLink™ (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in your gaming.

EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.

EXTREME OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.

ULTRA DURABILITY
The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

PCB COATING
Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant - prevents unwanted conduction paths and board damage.
Corrosion resistant - protects from salt spray, humidity, and corrosion.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

INTUITIVE AORUS ENGINE
Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.

WARRANTY 4 YEARS
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.

TECHNICAL SPECS

Graphics Processing
GeForce RTX™ 3090
Core Clock
1785 MHz (Reference Card: 1695 MHz)
CUDA® Cores
10496
Memory Clock
19500 MHz
Memory Size
24 GB
Memory Type
GDDR6X
Memory Bus
384 bit
Memory Bandwidth (GB/sec)
936 GB/s
Card Bus
PCI-E 4.0 x 16
Digital max resolution
7680x4320
Multi-view
4
Card size
L=252 W=135 H=40 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
750W
Power Connectors
8 pin*2
Output
DisplayPort 1.4a *3
HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0)
SLI Support
2‎-way NVIDIA NVLINK™
Tube length
395mm ± 1.5%
Radiator
240 mm
Fan
2x 120 mm
Accessories
1. Quick guide
2. 4-year warranty registration
3. Metal sticker
4. Xtreme robot limited edition
