GeForce RTX™ 3070 VISION OC 8G

FEATURES
• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3070
• Integrated with 8GB GDDR6 256-bit memory interface
• WINDFORCE 3X Cooling System with alternate spinning fans
• RGB Fusion 2.0
• Protection metal back plate

CORE CLOCK
1815 MHz (Reference Card: 1725 MHz)

Gigabyte GV-N3070VISION OC-8GD - RTX3070 Vision OC (white housing) - with Fusion2.0 RGB Lighting, Windforce 3X, 2 slots required, 3x 80mm unique blade stack fans with alternate spinning for max-covered cooling, back-sided heatsink + 4x 10mm copper heatpipes with DTH (Direct Touch Heatpipes), 8nm, Pci-E 4.0 16x, 8GB 256bit DDR6 (448GB/sec memory transfer), RoPs : 96, 5888 cuda cores, Tensor / RT cores : 184/46 with 5.75mb L1 + 4mb L2 cache, 165 GPexels/Sec, 317 GTexels/Sec, 20310 GFLoPS, 184x TMUs, core clOCk : 1725/1815mhz; memory : 14000mhz, 2x DP+ 2x HDMi - require 8pin+6pin power connector.

CREATE YOUR WORK FASTER THAN EVER
Powerful GeForce RTX™ 30 VISION series accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING、3D ANIMATION、PHOTOGRAPHY、GRAPHIC DESIGN、ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3X80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

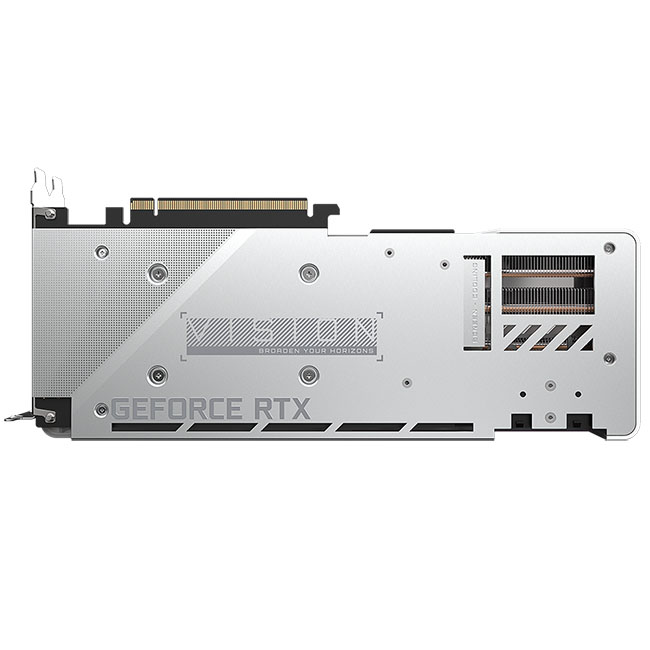

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

NVIDIA AMPERE ARCHITECTURE
The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.

Technical Specs
GeForce RTX™ 30 Series GeForce RTX™ 3070 VISION OC 8G
GeForce RTX™ 3070 VISION OC 8GKey Features Specification Support News & Awards Gallery Buy
Graphics Processing
GeForce RTX™ 3070
Core Clock
1‎815 MHz (Reference Card: 1725 MHz)
CUDA® Cores
5‎888
Memory Clock
1‎4000 MHz
Memory Size
8‎ GB
Memory Type
GDDR6
Memory Bus
2‎56 bit
Memory Bandwidth (GB/sec)
4‎‎48 GB/s
Card Bus
PCI-E 4.0
Digital max resolution
7‎680x4320
Multi-view
4‎
Card size
L=286 W=115 H=51 mm
PCB Form
ATX
DirectX
1‎2 Ultimate
OpenGL
4‎.6
Recommended PSU
6‎50W
Power Connectors
8‎ pin*1 + 6 pin*1

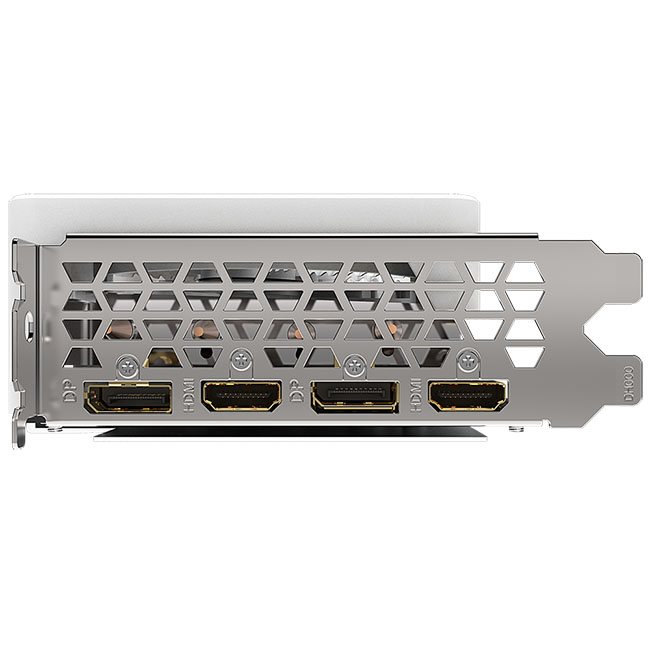

Output
DisplayPort 1.4a *2
HDMI 2.1 *2
SLI Support
N/A
Accessories
Quick guide
