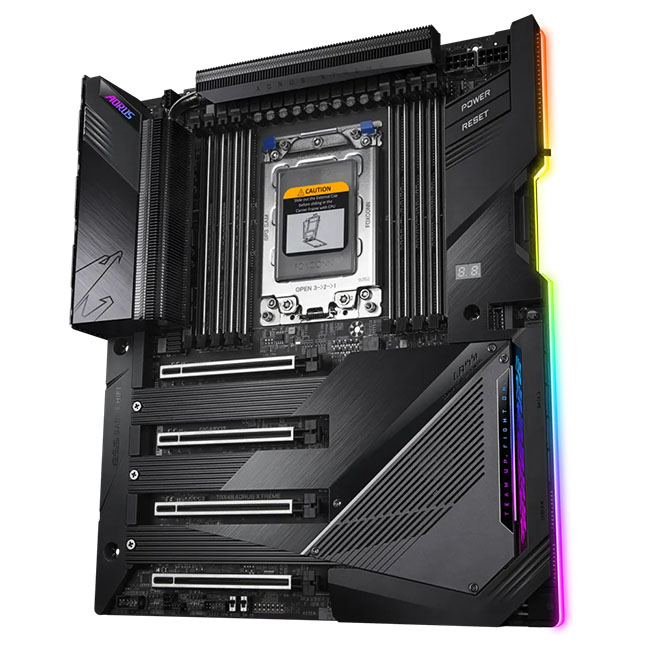

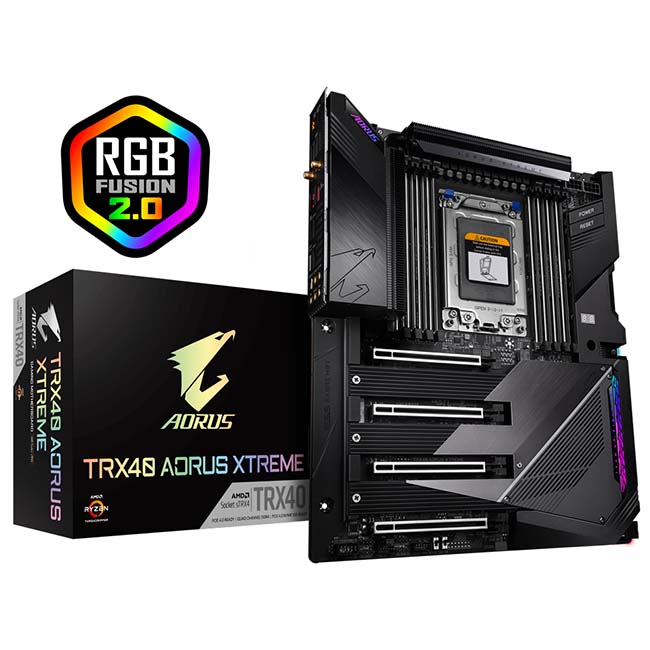

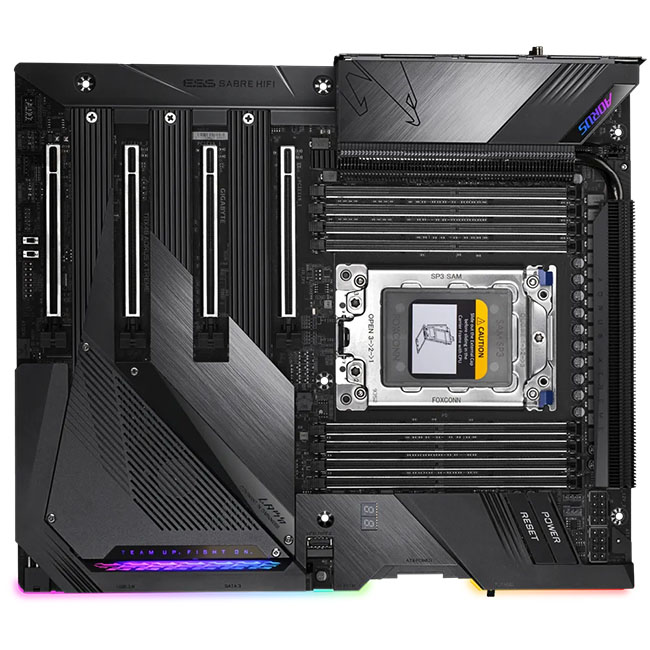

Gigabyte TRX40 Aorus Xtreme + WIFI

AMD TRX40 AORUS Motherboard with Direct 16+3 Phases Infineon Digital VRM, Fins-Array Heatsink, NanoCarbon Baseplate, Intel Dual 10GbE LAN, 4 PCIe 4.0 M.2 with Thermal Guards , Intel® WiFi 6 802.11ax, ESS SABRE HiFi 9218 DAC, AORUS Gen4 AIC Adaptor

• Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
• Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
• 16+3 Phases Infineon Digital VRM Solution with 70A Power Stage
• Thermal Reactive Armor Design with Fins-Array Heatsink, 8mm Mega-Heatpipe and NanoCarbon Baseplate
• Intel® X550-AT2 Dual 10GbE BASE-T LAN with cFosSpeed
• 4 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
• Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with 2X AORUS Antenna
• 130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220-VB and WIMA Audio Capacitors
• Exclusive AORUS Gen4 AIC Adaptor for Extra 4 NVMe PCIe 4.0/3.0 x4 M.2
• USB TurboCharger for Mobile Device Fast Charge Support
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
• Front & Rear USB 3.2 Gen2 Type-C™ Header
• Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

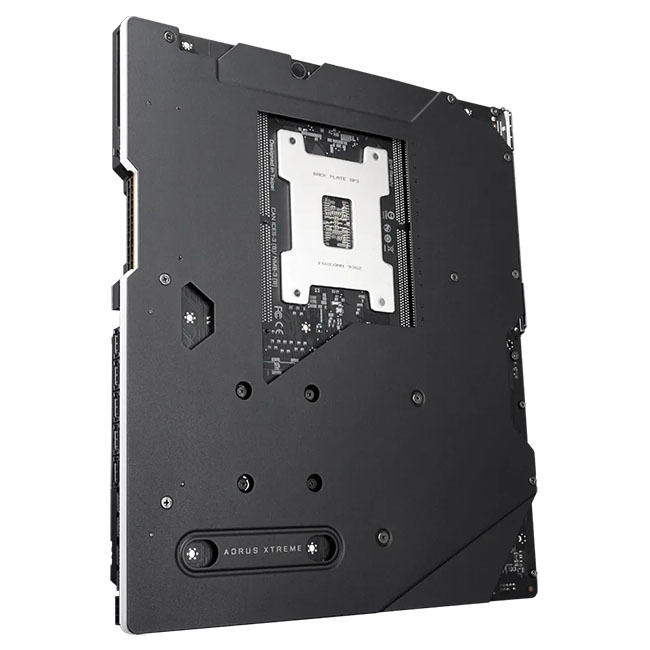

Gigabyte TRX40 Aorus Xtreme + WIFI : AMD sTRX4 (Threaderipper 3 series only) Motherboard - with 16+3 phase digital VRM, pre-mounted I/O shield with thermal armor + RGB Fusion 2.0 with on-board RGB display (multi zones), Addressable LED Strip Support, on-board buttons (power + reset + clear CMOS+ Q-Flash), nanocarbon coating backplate, 2x copper PCBs design, MoSFET heatsinks with 4x DTH fins-array copper heatpipe, SmartFan5 with 9x temperature sensors + 8x hybrid fan headers, solid pin power connectors (ATX 24+8+8pin), memory armor with stainless steel shielding, PCIe armor with stainless steel shielding+double locking bracket, with extra noise detection hardware monitoring, with bundled Aorus Gen4 Aic adapter
- 8x Quad channel DDR4-4400(O.C)/3200 up to 256Gb (ECC or non-ECC), 10x SATA6G + 4x Gen4x4 M.2/NGFF with thermal guards (PCIe or SATA mode), with NVME raid 0/1//0+1/5/10, on-board Realtek.

DESIGN CONCEPT
Innovative design, cutting-edge functionality, state-of-the-art aesthetics, sophisticated thermal design, next generation network connectivity ,Hi-Fi level audio system. TRX40 AORUS XTREME is the new definition of a flagship motherboard.

EXTREME POWER DESIGN
To unleash the full potential of the 3rd Generation AMD Ryzen™ Threadripper™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, TRX40 AORUS XTREME is a true beast among motherboards.

THERMAL REACTIVE ARMOR
TRX40 AORUS XTREME uses some unprecedented and innovative thermal design to ensure CPU, Chipset, SSD stability and low temperature under full loading application and gaming.
Thermal Design Right-Angled Connectors NanoCarbon Baseplate Noise Detection 7X Hybrid Fan Header

UNPARALLELED PERFORMANCE
Hungry for better performance? TRX40 AORUS XTREME has full PCIe 4.0 design, supports high frequency memory, and full SSD thermal guard to make sure you get the maximum full system performance.

NEXT GENERATION CONNECTIVITY
A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. TRX40 AORUS XTREME provides all next-generation network, storage, and WIFI connectivity to keep you up to speed.

DEFINITIVE AESTHETICS
GIGABYTE ID team designs TRX40 AORUS XTREME from the drawing board. After countless hours of conceptualizing ideas, fine tuning details and engaging in discussion, GIGABYTE has produced a board that is equal parts beast and beauty.

HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience. TRX40 AORUS XTREME is equipped with several audiophile level components such as ESS SABRE DAC and WIMA capacitors to provide a superb audio experience.

True Hi-Fidelity Music (Digital Audio)
Provides high quality surround sound audio and vibrant stream experience.

DTS :X® Ultra
Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs.



DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.



ULTRA DURABLE
GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the TRX40 AORUS XTREME and reinforce every slot to make each of them solid and durable.

GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. TRX40 AORUS XTREME bundled several useful and intuitive software to help users to control every aspect of motherboard.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
* Free 1 year XSplit Gamecaster + Broadcaster Premium License.

Technical Specs
CPU
AMD Socket sTRX4:
Support 3rd Generation AMD Ryzen™ Threadripper™ processors
See supported processors
Chipset
AMD TRX40
Memory
8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
Quad Channel memory architecture
Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
See supported memory
Audio
Realtek® ALC4050H codec+Realtek® ALC1220-VB codec (rear panel audio)
Realtek® ALC4050H codec+ESS SABRE9218 DAC (front panel audio)
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel® 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit), supporting 2 RJ-45 ports
Wireless Communication module
Intel® Wi-Fi 6 AX200
Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.0
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SOCKET)
8 x SATA 6Gb/s connectors (SATA3 0~7)
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Support for RAID 0, RAID 1, and RAID 10
ASMedia® SATA 6Gb/s Controller:
2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only
USB
CPU:
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
Chipset:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+1 USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extention cable)
Chipset+ASMedia® USB 3.2 Gen 2 Controller:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x OC_PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
3 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
10 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
1 x GIGABYTE add-in card connector
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x power button
1 x reset button
2 x temperature sensor headers
2 x BIOS switches
Voltage Measurement Points
Back Panel Connectors
1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
RGB Fusion
Smart Backup
Smart Keyboard
Smart Survey
System Information Viewer
USB Blocker
USB TurboCharger
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
XSplit Gamecaster + Broadcaster (12 months license)
cFosSpeed
Operating System
Support for Windows 10 64-bit
Form Factor
XL-ATX Form Factor; 32.5cm x 27.5cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
